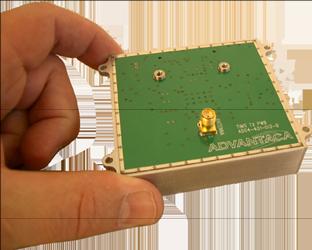

SEGA-Node TIMS Radar
1 2 3 4
Key Features:

  • 100 Dismount Detection
  • Foliage Penetrating (FOPEN)
  • LPD/ LPI Stealth Signal
  • Doppler Signature ID Potential

Radar detects personnel (and larger) motion. Radar penetrates foliage and is well suited to air-deployment where the sensors may bury in grass, brush otherwise become obstructed.  Radar is range-gated, accepting motion within the factory set 100’ range bubble and rejecting signals from outside 100’ making detections more reliable.  Factory adjustable Doppler passband accepts target speeds within 0.1 to 40 m/s and filters out unwanted signal source velocities outside that band.  The radar has a very sensitive wideband receiver.  The antenna is omni-directional.  Larger, directional antennas are available.
Radar Typical Performance
35 M
Frequncy 720 MHz
Bandwidth 80 MHz
Tx Power 9 mV
Voltage 3.6 V
Current 5 mA
Temp -40 to +80 C
Antenna Typical Performance
0 dBi
Beampattern omni
Style Linear Dipole
P/N Description Delivery
LTWR-100 Raddar 35 m 60 Days
LTWA-4 Raddar Antenna 60 Days
